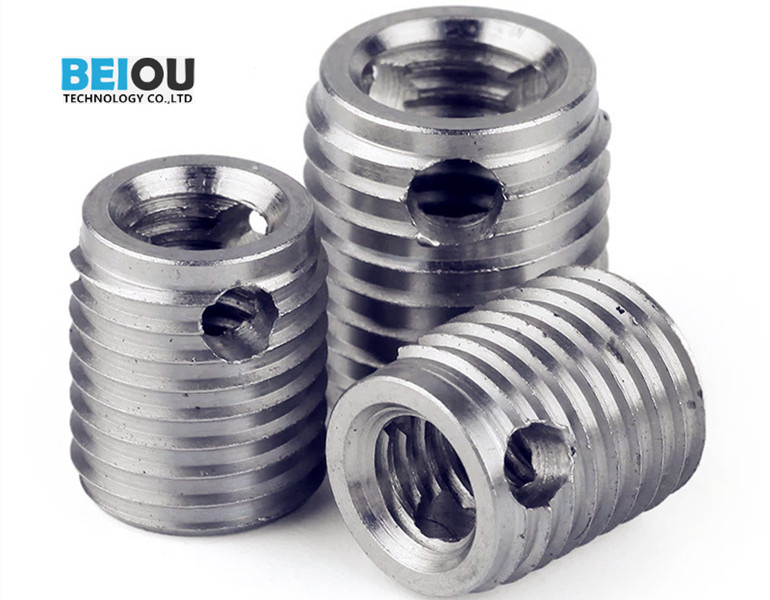

 Self Tapping Inserts are cylindrical metal bushings with internal and  external threads and are specially designed to cut their own threads as  they are being driven into a drilled hole.



 •No pre-tapping required

 •Very high pull-out resistance

 •Unlimited thread re-usability

 Wide variety of styles to fit almost every application

Technical parameter:(commonly used)



308
self-tapping
wlth cutting bores
Length
(mm)
External
thread
The reference hole diamter Minimum
borehole depth
(mm)
Aluminium
alloy
Cast iron
products
M3-0.5 6 M5-0.6 4.6-4.7 4.7-4.8 8
M4-0.7 8 M6.5-0.8 6.0-6.1 6.1-6.2 10
M5-0.8 10 M8-1.0 7.4-7.5 7.6-7.7 13
M6-1.0 12 M10-1.25 9.3-9.4 9.5-9.6 15
M8-1.25 14 M12-1.5 11.1-11.3 11.3-11.5 18
M10-1.5 18 M14-1.5 13.1-13.3 13.3-13.5 22
M12-1.75 22 M16-1.75 15.0-15.3 15.3-15.5 26
M14-2.0 24 M18-2.0 17.0-17.2 17.3-17.5 28
M16-2.0 24 M20-2.0 19.0-19.2 19.3-19.5 27



 Do you think what is the most important feature of thread inserts?

 In terms of our existing specifications, can meet your requirements?

We welcome all the customers to visit our factory.

Please contact us if you have any question about threaded inserts.
