 wire thread inserts features:

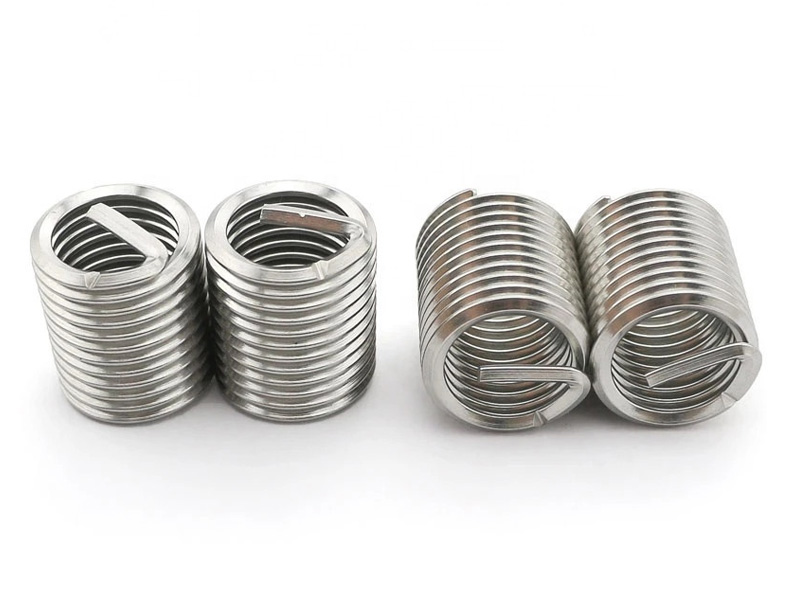

A thread insert, other names we called threaded bushing ;screw Insert ,wire thread insert  is a fastener element that is inserted into an object to add a threaded hole. It is made of high strength, precision, corrosion resistant and diamond wire.







wire thread inserts advantages:

•Wear resistance



•Corrosion resistance



•Heat resistance



•Material saving



•Can be customized if necessary



Applications:

 Widely used in large automobile manufacturing, metallurgy, electric power, machinery, chemical fiber, chemical industry.

Nominal
Thread
Size

Size
Design-ation

"Q"Nominal Length

Qutside
Diameter

Number of Coils
Nominal Length

1Dia

2Dia

Min

Max

1Dia

2Dia

M2*0.4

2CN

2.0

4.0

2.62

2.76

3.5

8

M2.5*0.45

2.5CN

2.5

5

3.3

3.5

4

9

M3*0.5

3CN

3

6

3.8

4

3

6

M3.5*0.6

3.5CN

3.5

7

4.55

4.75

4

8.9

M4*0.7

4CN

4

8

5.05

5.25

4

9.5

M5*0.8

5CN

5

10

6.35

6.6

4.5

10

M6*1

6CN

6

12

7.6

7.85

4.5

10

M7*1

7CN

7

14

8.65

8.9

5.2

11.5

M8*1

8CN

8

16

9.85

10.1

6

13.1

M8*1.25

8CN

8

16

9.85

10.1

5

10.5

M10*1

10CN

10

20

12.1

12.5

7.7

16.5

M10*1.25

10CN

10

20

12.1

12.5

6.1

13.3

M10*1.5

10CN

10

20

12.1

12.5

5

11

M11*1.5

11CN

11

22

13.1

13.5

5.7

12.5

M12*1

12CN

12

24

14.4

14.8

9.4

19.9

M12*1.25

12CN

12

24

14.4

14.8

7.5

16.1

M12*1.5

12CN

12

24

14.4

14.8

6.2

13.5

M12*1.75

12CN

12

24

14.4

14.8

5

11.75

M14*1.25

14CN

14

28

16.8

17.2

8.8

18.8

M14*1.5

14CN

14

28

16.8

17.2

7.3

15.7

M14*2

14CN

14

28

16.8

17.2

5.5

13.5

M16*1.5

16CN

16

32

19

19.4

8.5

18.1

M16*2

16CN

16

32

19

19.4

6.5

13.5

M18*1.5

18CN

18

36

21.48

21.82

9.8

20.3

M18*2

18CN

18

36

21.5

22

7.1

15.2

M18*2.5

18CN

18

36

21.5

22

5.5

12

M20*1.5

20CN

20

40

23.7

24.2

10.7

22.8

M20*2

20CN

20

40

23.7

24.2

8

17.1

M20*2.5

20CN

20

40

23.7

24.2

6

13.5

M22*1.5

22CN

22

44

26

26.52

11.9

22.9

M22*2

22CN

22

44

26.3

26.8

8.8

18.6

M22*2.5

22CN

22

44

26.3

26.8

7

15











wire thread inserts material:

Material

Grade

Tensile strength

under room

temperature

Temperature

 under used

Surface

Standard





Stainless

steel

1Cr18Ni9





>1400Mpa

425°C

short time



315°C

long time

No plating



Coat lubricant on the surface



Silver plating



Cadmium plating







Metric

1Cr18Ni9Ti

00Cr17Ni14Mo2

Copper

alloy

QSn6.5-4

>1000Mpa

300°C

short time



250°C

long time

No plating



Cadmium plating

UNF

High

temperature

alloy

Inconelx750

Nimonic90

>1400Mpa

750°C

short time



550°C

long time

No plating



Silver plating



UNC







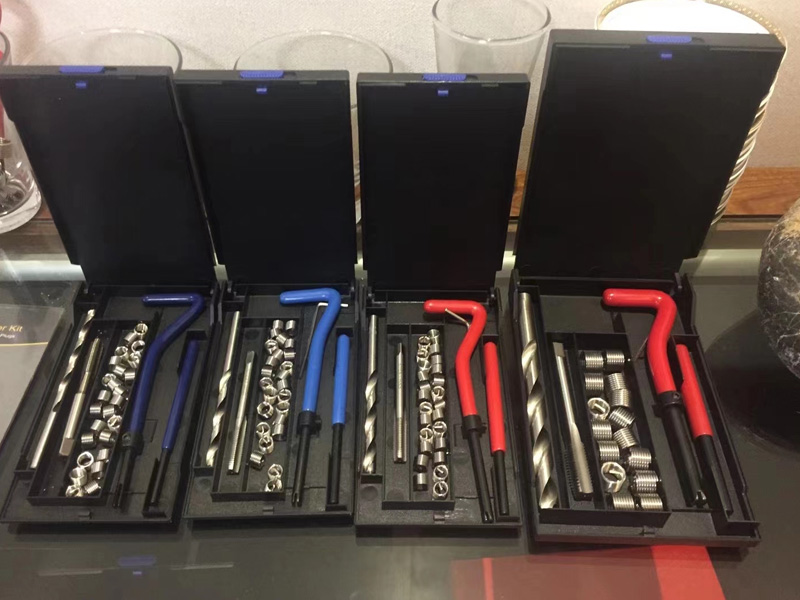

 wire thread inserts installation process:

Drilling→Tapping→Installing→Break off tang
